Description

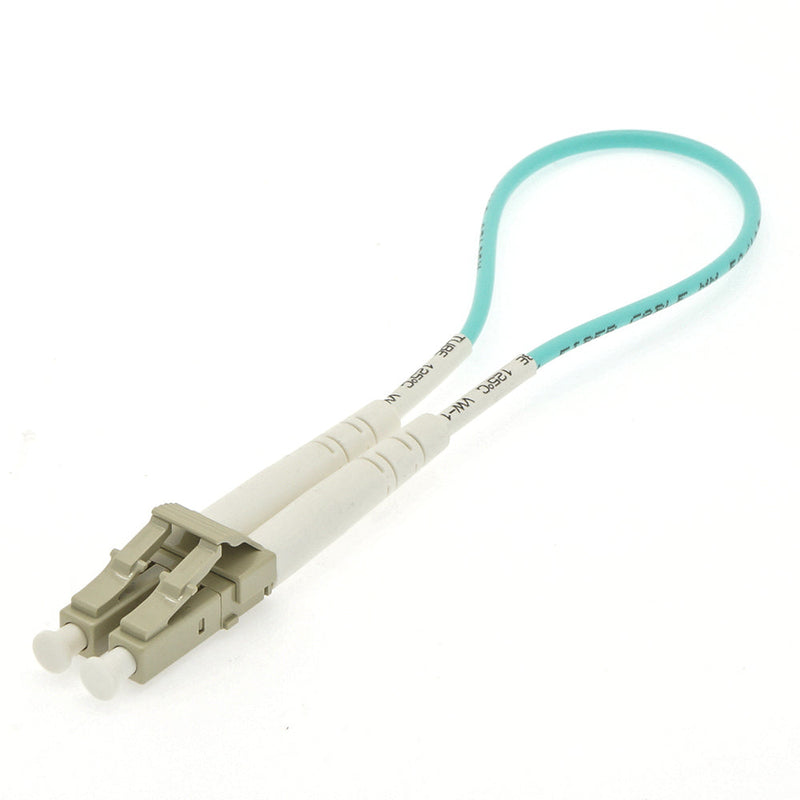

BigCatCables Fiber Optic Loopback is designed to provide a media of return patch for a fiber optic signal; typically it is used for fiber testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Similar as patch cables, fiber optic loopback can be with various jacket types and cable diameters.
Applications:
Cable TV, LAN, Telecom network, test equipment
Features:
* Various connector types available
* Low insertion loss and back reflection loss
| Connector Type | LC - 50/125 - OM4 | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Durability | 500 Cycles | ||
| Operation Temperature Range | -20°C +70°C |
