TP-Link Product Page: MC210CS

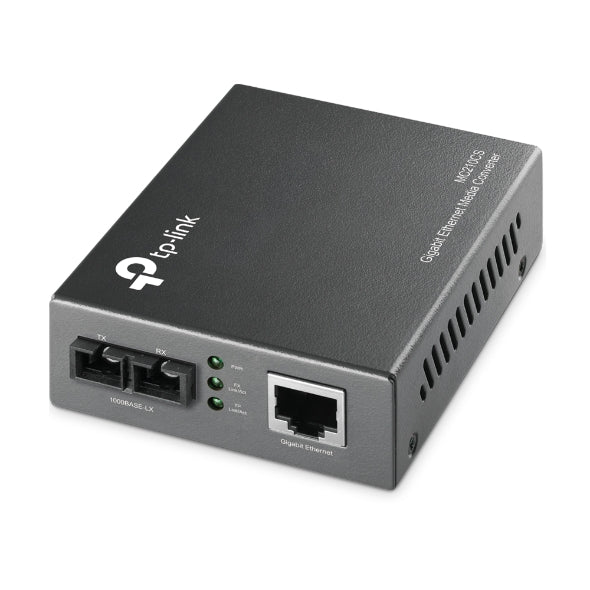

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
* Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
* Supports auto MID/MID-X for TX port
* Link Fault Pass-through and Far End Fault minimize the loss caused by link failure timely
* Provides switch configuration of Force /Auto transfer mode for FX port.
* Extends fiber distance up to 15km
* Easy-to-view LED indicators provide status to monitor network activity easily
* External power supply (power adapter included)
|
Standards and Protocols
|
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
|
|
|
Basic Function
|
Full Duplex Flow Control (IEEE 802.3x)
|
|
|
Extends fiber distance up to 15km
|
||
|
Link Fault Passthrough and Far End Fault minimize the loss
caused by link failure timely
|
||
|
Ports
|
1 1000M SC port
|
|
|
1 1000M RJ45 port (Auto MDI/MDIX)
|
||
|
Network Media
|
1000BASE-T
|
UTP Cat.5E cable (maximum 100m)
EIA/TIA-568 100 ohm STP (maximum 100m)
|
|
1000BASE-FX
|
Single-mode Fiber
|
|
|
LED Indicators
|
PWR, LINK, RX
|
|
|
Safety & Emission
|
FCC, CE
|
|
|
Dimensions (W*D*H)
|
3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
|
|
|
Environment
|
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
|
Power Supply
|
External Power Adapter
|
|
