Description
TP-Link Product Page: MC200CM

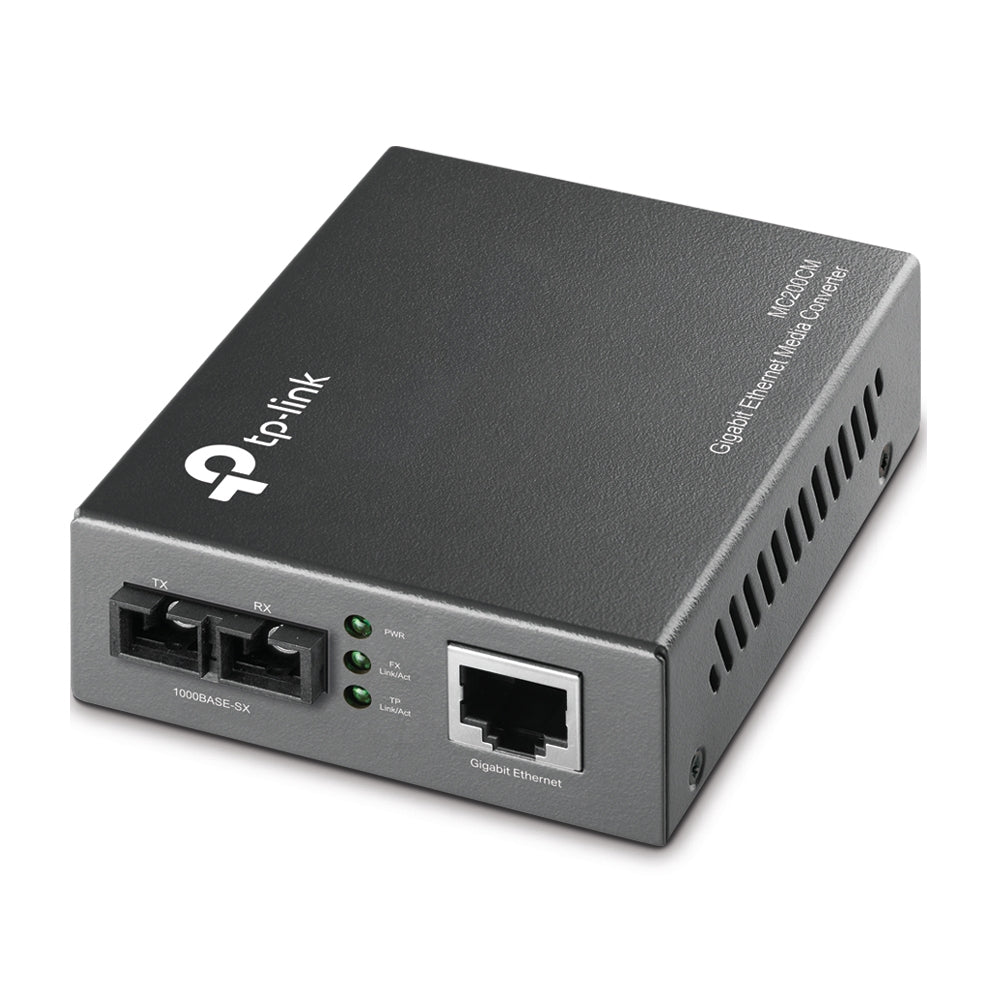

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
* Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
* Link Fault Pass-through and Far End Fault minimize the loss caused by link failure timely
* Supports auto MID/MID-X for TX port
* Provides switch configuration of Force /Auto transfer mode for FX port
* Extends fiber distance up to 0.5km
* Easy-to-view LED indicators provide status to monitor network activity easily
* External power supply (power adapter included)
|
Standards and Protocols
|
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
|
|
|
Basic Function
|
Full Duplex Flow Control (IEEE 802.3x)
|
|
|
Extends fiber distance up to 0.5km using 50/125um fiber,
0.22km using 62.5/125um fiber) |
||
|
Link Fault Passthrough and Far End Fault minimize the loss |
||
|
Ports
|
1 1000M SC port
|
|
|
1 1000M RJ45 port (Auto MDI/MDIX)
|
||
|
Network Media
|
1000BASE-T
|
UTP Cat.5E cable (maximum 100m)
EIA/TIA-568 100 ohm STP (maximum 100m)
|
|
1000BASE-FX
|
Multi-mode Fiber
|
|
|
LED Indicators
|
PWR, LINK, RX
|
|
|
Safety & Emission
|
FCC, CE
|
|
|
Dimensions (W*D*H)
|
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
|
|
|
Environment
|
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
|
Power Supply
|
External Power Adapter
|
|
