Description

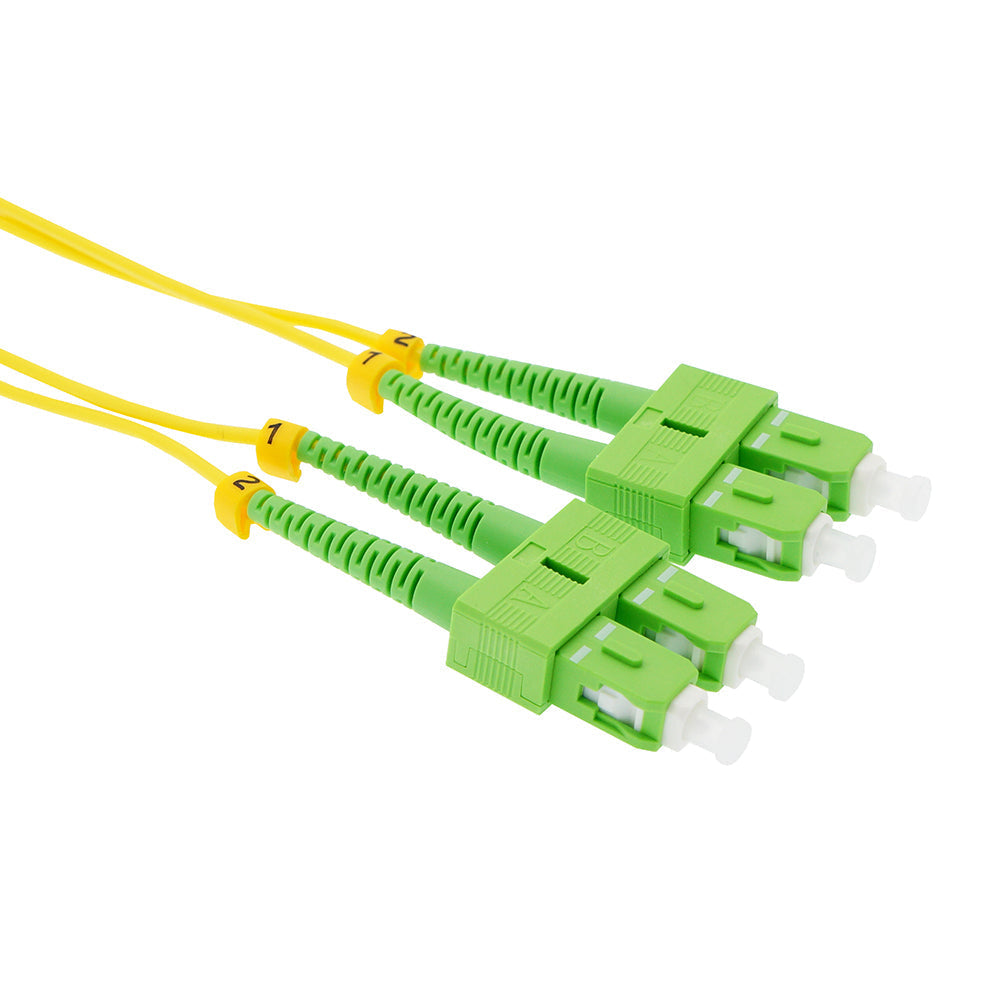

BigCatCables OS1 fiber optic patch cables are constructed of high quality ceramic ferrules and connectors, and 100% tested for quality assurance. Each cable includes test report. 1/2 Markers easily identify the TX and RX connector on each end of the assembly
-Connector Type SC-SC Singlemode
-Polishing APC
-Return Loss 60 dB
-Insertion Loss 0.30 dB
-Ferrule Material Ceramic (zirconia)
-Ferrule Diameter 1.25 mm / 2.5 mm
-Body type Duplex
-Nominal Diameter Core 9/125 µm
-Jacket Material OFNR
-Operation Temperature Range -20°C +70°C
-Cable Diameter 2.0mm
