Description

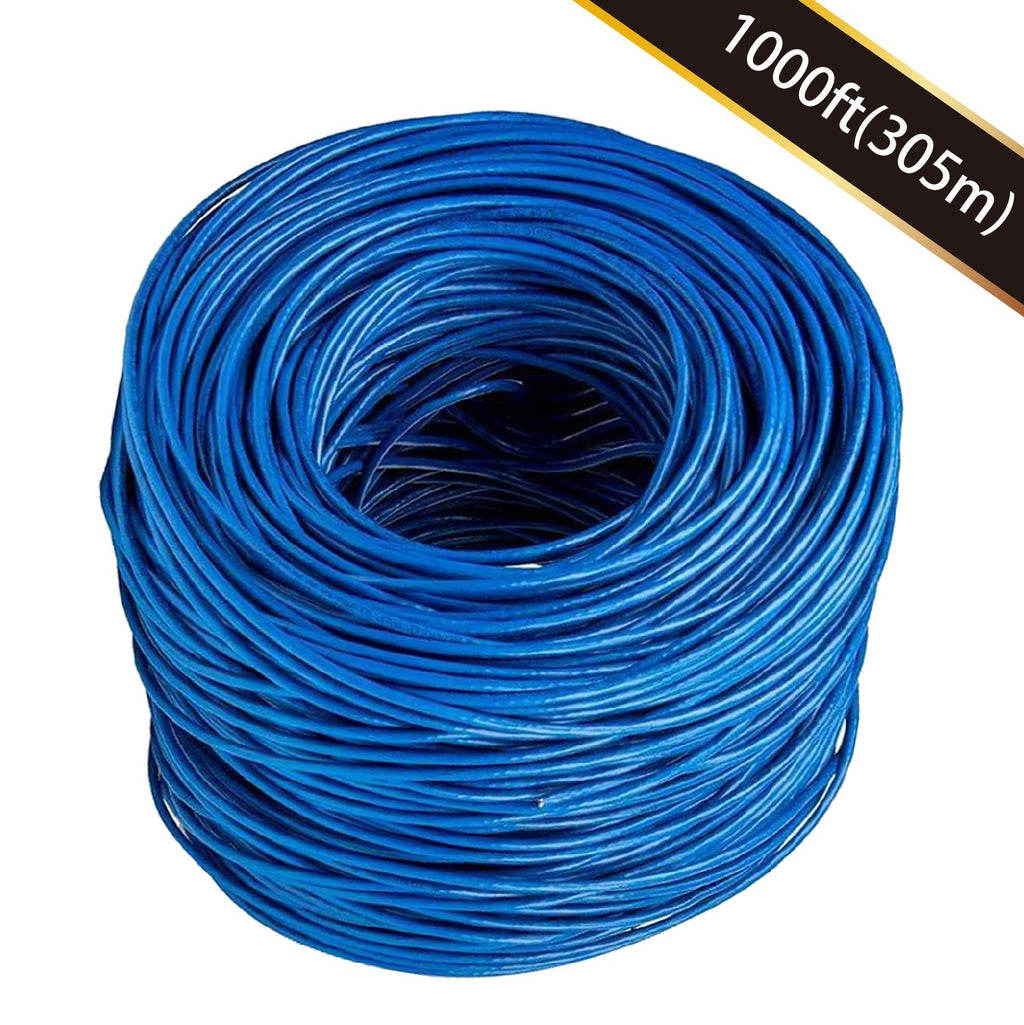

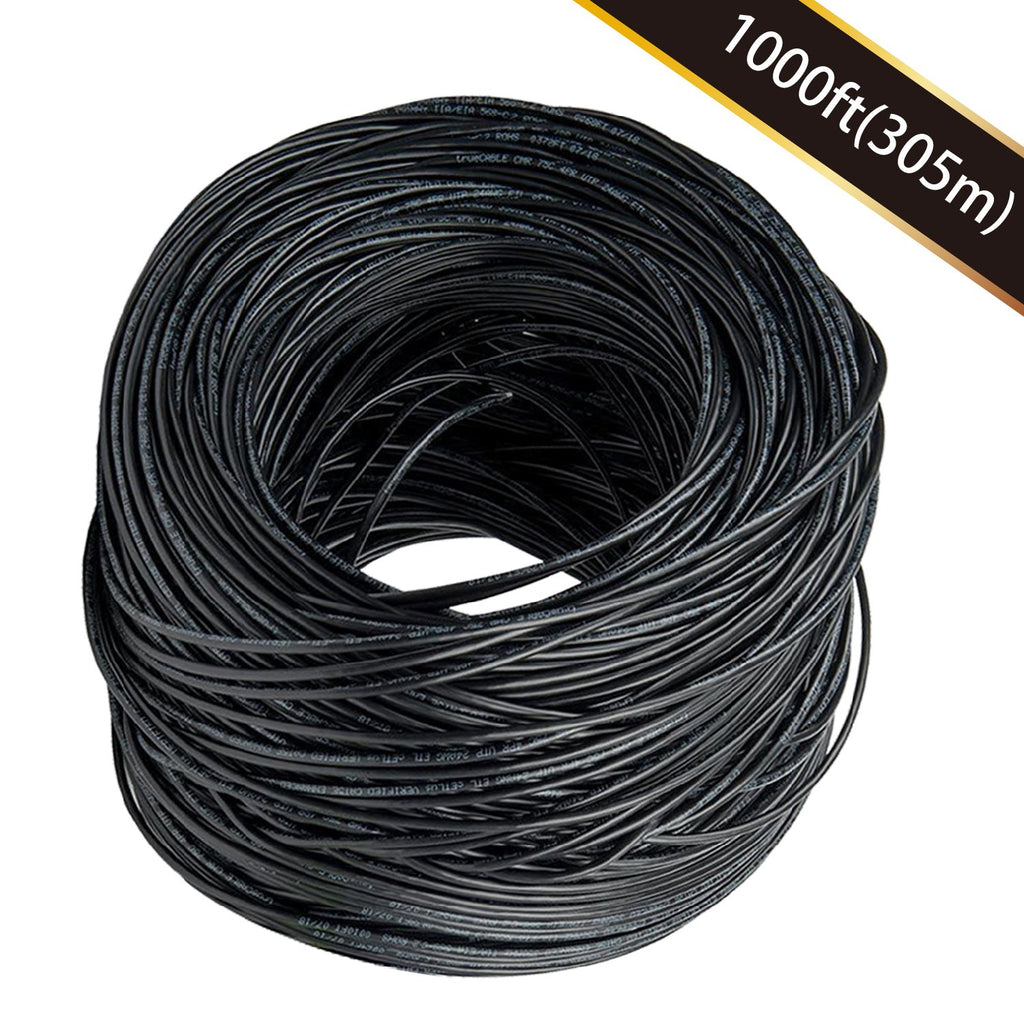

1000 Foot Cat.5e UTP 24AWG Solid CMR Bulk Cable, UL Listed
Cat.5E cable is used for computer networking (10/100/1000BASE-T), data, voice, or security system installations. Wiring your office, home, home office, or even an entire factory. Solid bulk cables are available in CMR (Riser) and CMP (Plenum) rated jackets. Our bulk cable is also available in various color options so you can easily identify and color-code you wiring.
Choose Your Own Color: Black, Blue, Green, Gray, Orange, Red or White

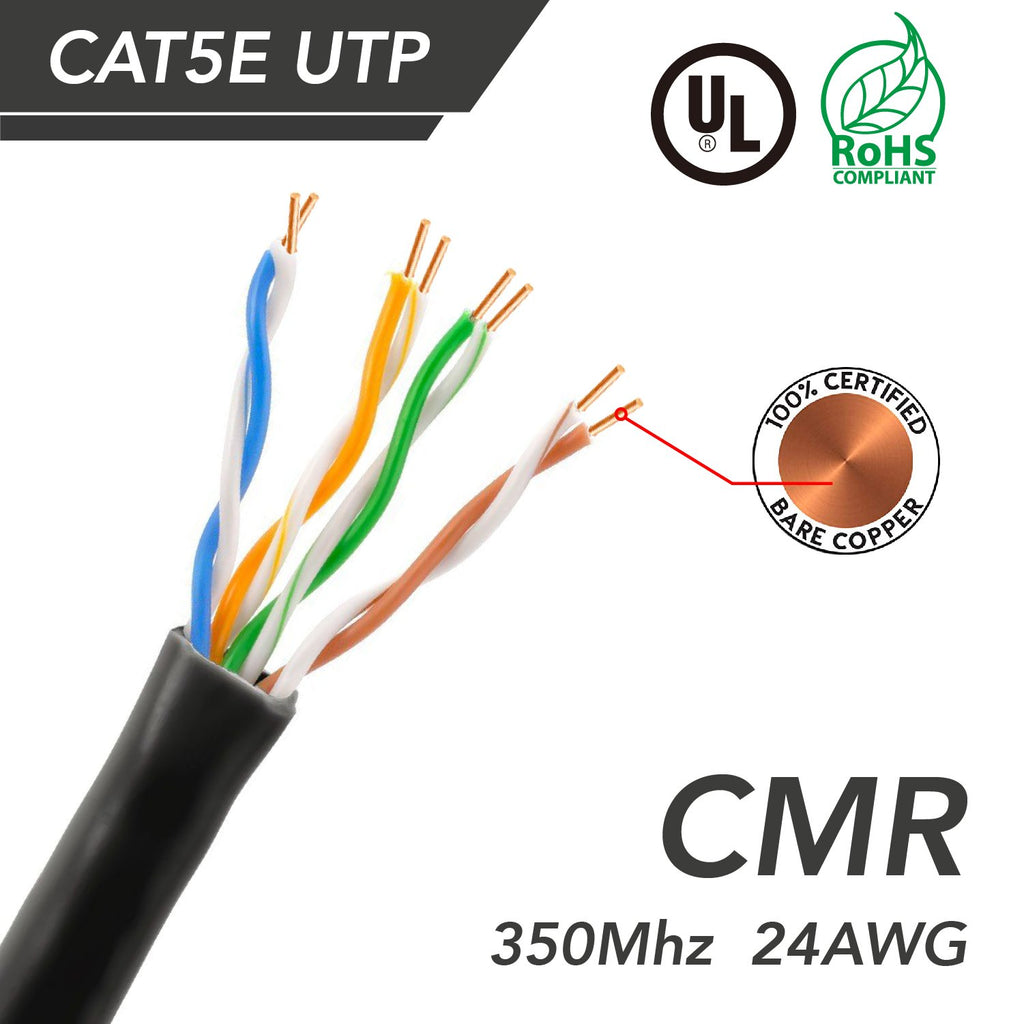

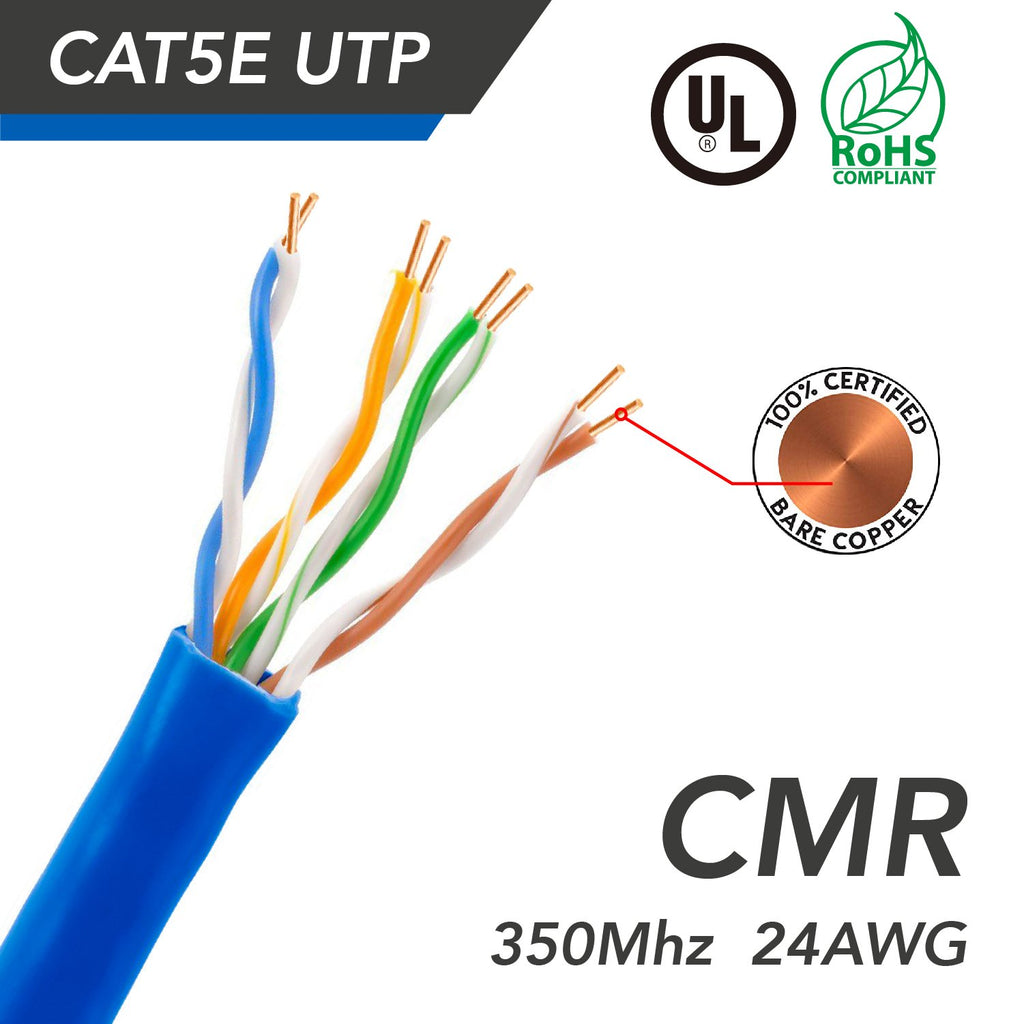

24AWG Pure Copper 4 Pair UTP (Unshielded Twisted Pair) Ethernet Cable
Solid Wire
350MHz Rated
CMR Rated
UL Listed

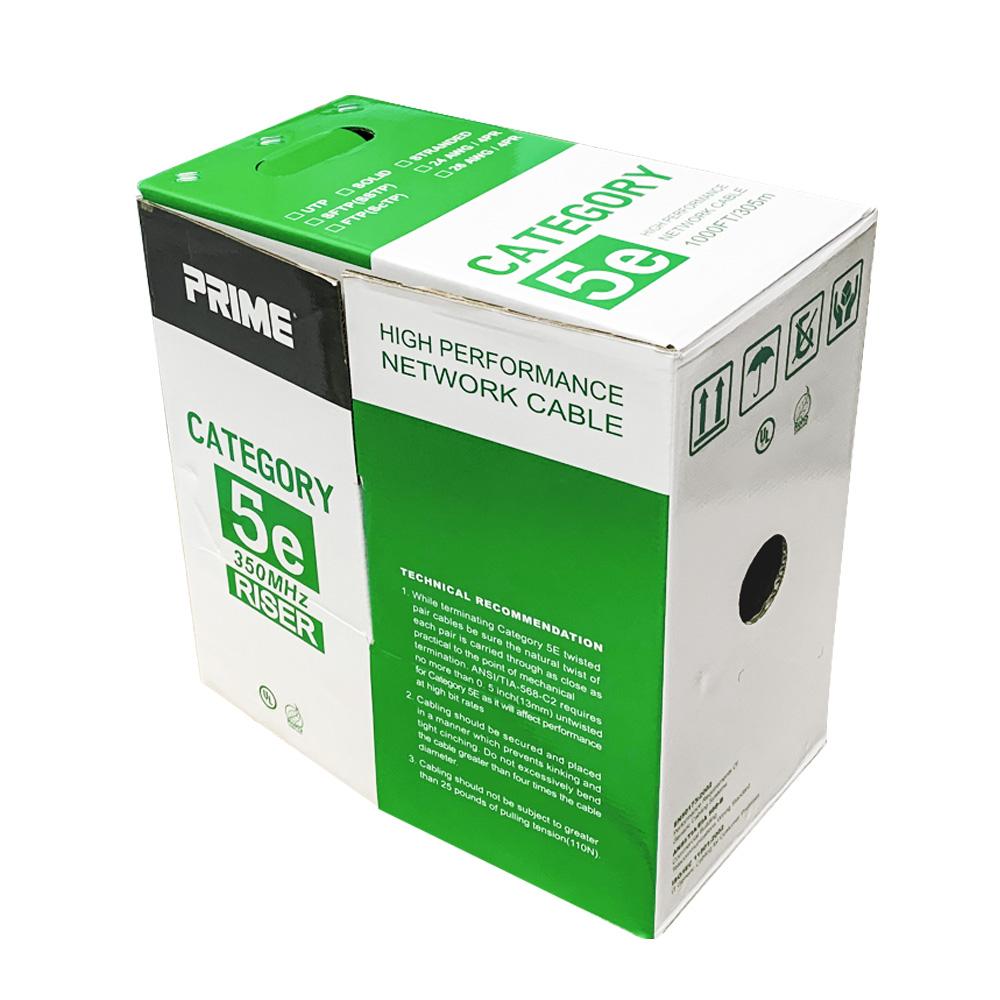

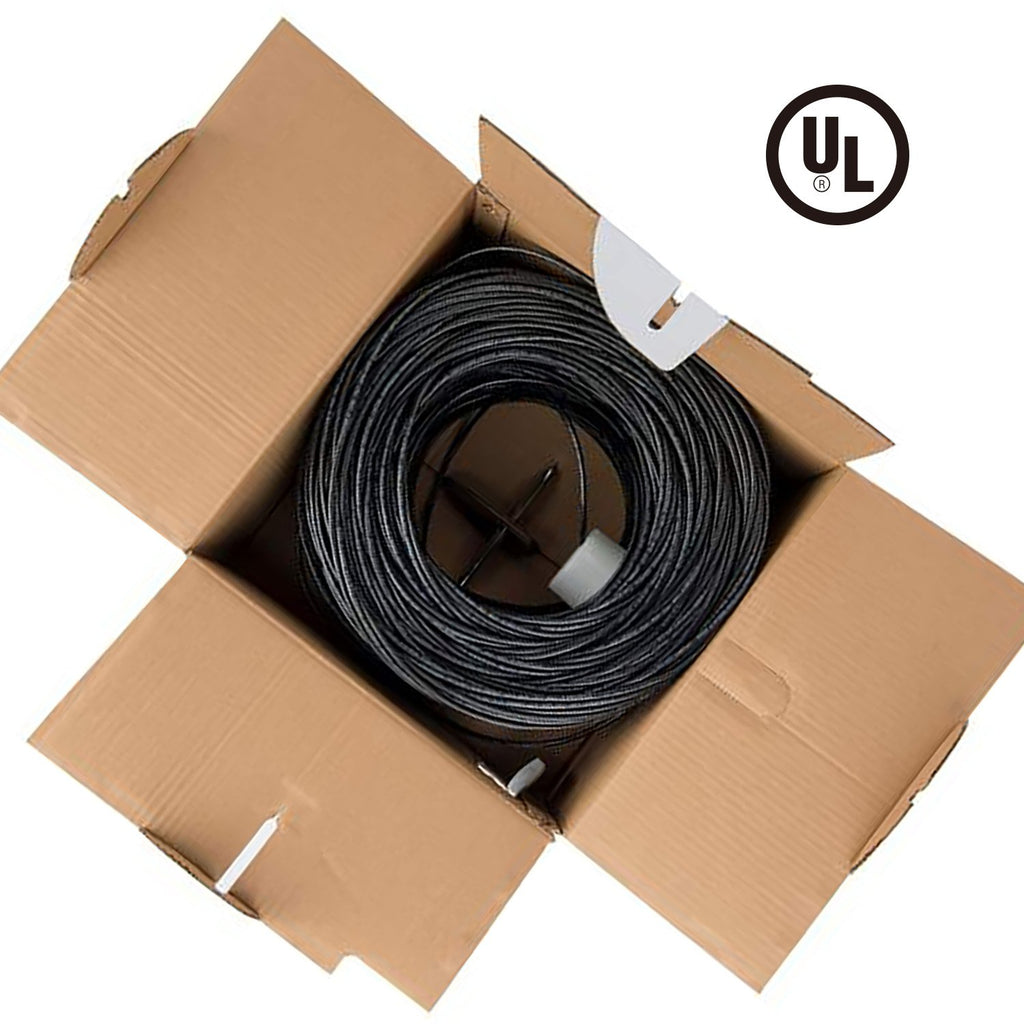

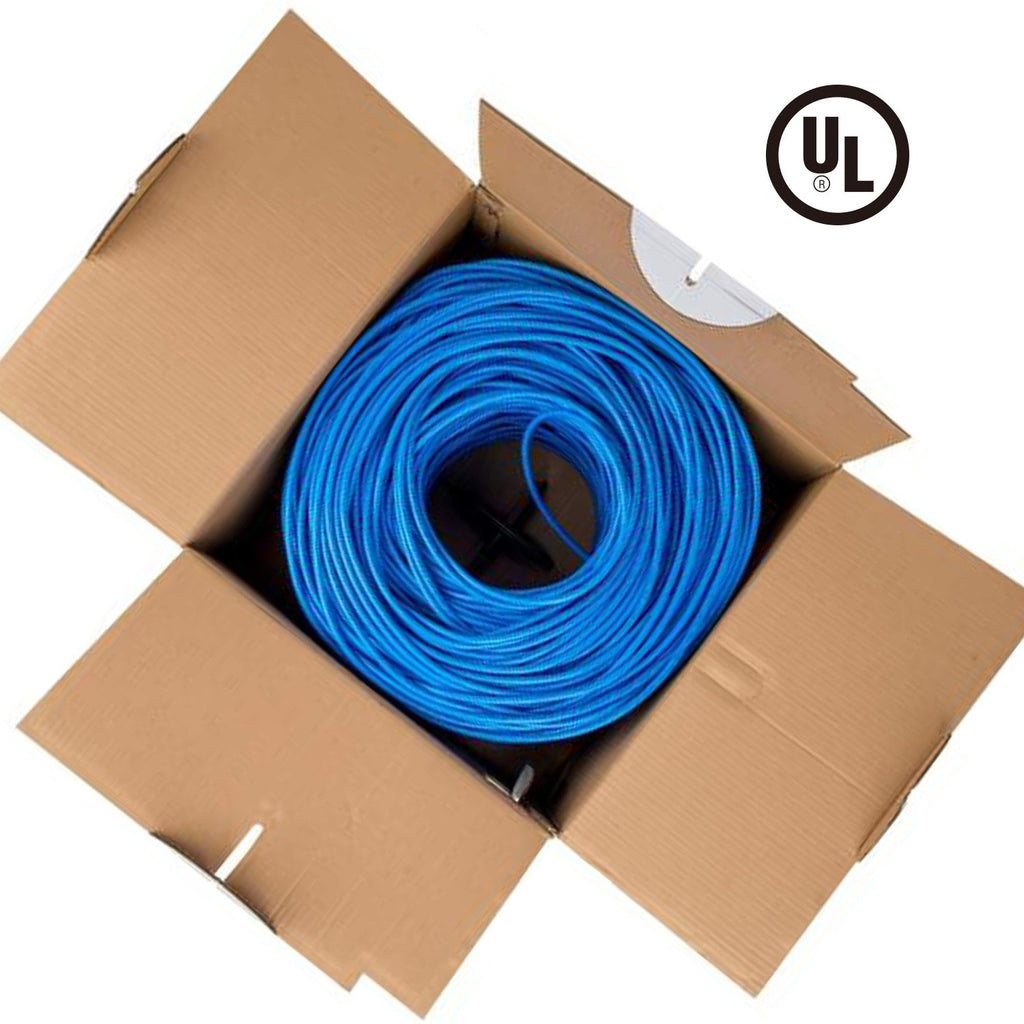

Pull Box
Solid vs Stranded:
- Solid wire consists of one piece of metal wire.
- Stranded wire is composed of a bundle of thinner wires.
Pros of Solid Wire:
- Less expensive than stranded wire.
- Features a more compact diameter with the same current-carrying capability as stranded wire.
- Less likely to fail due to corrosion
Cons of Solid Wire:
- Typically only available in small gauges.
- Continuous flexing or vibration will cause the wire to fatigue and break.
- Commonly used for in-wall wiring where flexibility is not required.
Pros of Stranded Wire:
- Very flexible and can withstand a greater amount of flexing and vibration.
- Easier to route.
Cons of Stranded Wire:
- Diameter is larger with the same current-carrying capability as solid wire.
- More costly than solid wire.
- More likely to fail due to corrosion from capillary action and a high surface area.

|

|
CMR: The 'R' in CMR is for 'Riser'.
- CMR type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum.
- CMP cables are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and will generate low smoke and toxin producing characteristics in the event of a fire.
CM/CMH/CMG: CM is used for general building wiring such as residential house.
- CM cables are used in areas where CMP or CMR is not required.
