Description
With the later network deployment, some network units are gradually transformed from multimode devices to singlemode devices. In the case of coexistence of the two modes, the mode conditioning patch cable is the best feasible solution for the interconnection between the two.

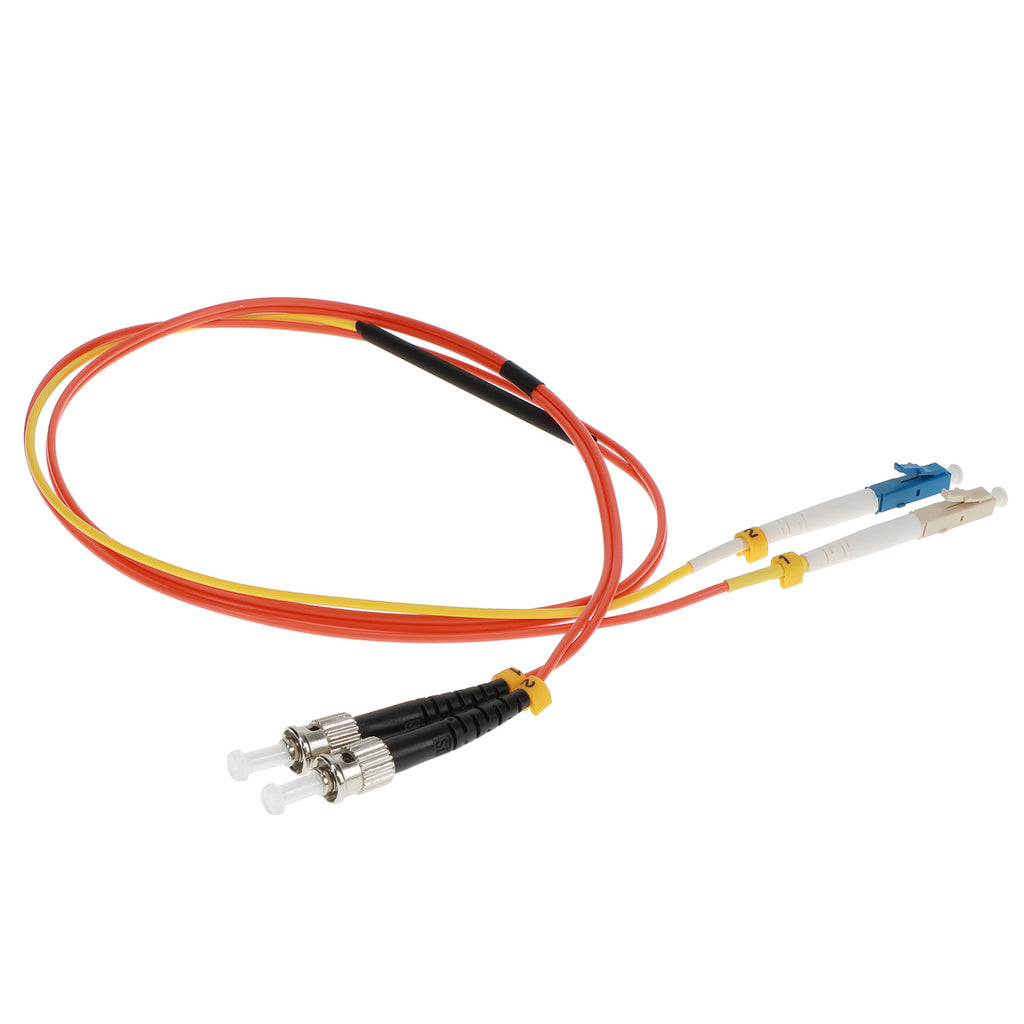

Connector 1: Single Mode 9/125 - LC
Connector 2: Multimode 62.5/125 - ST
| Connector Type | LC-ST Duplex | ||
| Polishing | UPC | ||
| Return Loss | 55dB | ||
| Insertion Loss | 0.5dB (SM to MM Plus Connector Loss) | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Jacket OD | 2mm | ||
| Fiber Mode | Singlemode LC / OM1 ST | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range | -20°C +70°C |
