Description

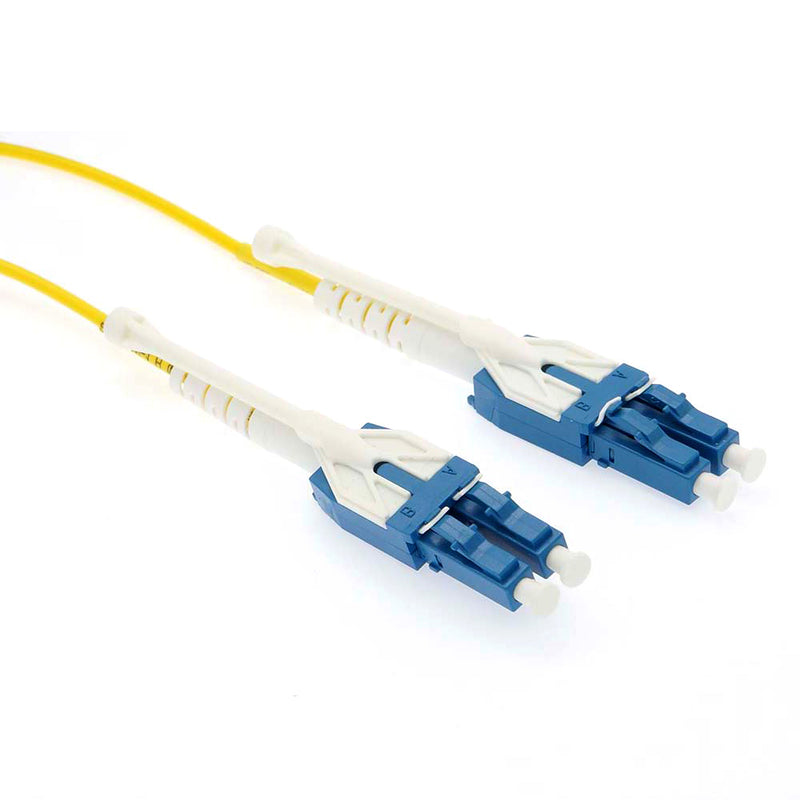

BigCatCables OS1 fiber optic patch cables are constructed of high quality ceramic ferrules and connectors, and 100% tested for quality assurance.
The LC-LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Pull-Push connector facilitates smooth and easy removal on high density patch panel.
-Connector Type LC-LC Singlemode. Duplex
-Polishing UPC
-Return Loss 55 dB
-Insertion Loss 0.30 dB
-Ferrule Material Ceramic (zirconia)
-Ferrule Diameter 1.25 mm / 2.5 mm
-Body type Duplex
-Nominal Diameter Core 9/125 µm
-Jacket Material OFNR / LSZH
-Operation Temperature Range -20°C +70°C
